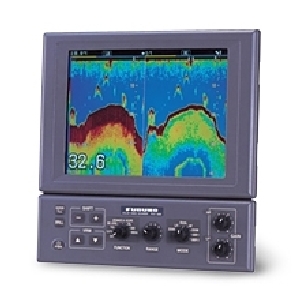

Furuno FCV1200L/LHU Echolood

FCV1200L ECHOSOUNDER 12-32VDC 10.4? TFT MONITOR/CONTROL UNIT & PROCESSOR UNIT (NO HULL UNIT) Characteristics: 1, 2, 3 or 5 kW output power selectable High definition active matrix color LCD Furuno Free Synthesizer (FFS) Transceiver design allows use of User-Selectable operating frequencies (15/28/38/50/88/107/200 kHz)



BlackBox system configuration allows use of optional CRT or LCD monitors FFS Transceiver provides future expansion capabilities and convenient retrofit of existing echo sounder systems Software programmable selection of display aspect ratio; Portrait (vertical) or Landscape (horizontal) Unique split range control allows independent range settings in dual-frequency mode Alarms for water depth, fish echoes and water temperature Specifications: DISPLAY 10.4" COLOR LCD SINGLE/DUAL DUAL FREQUENCY 15, 28, 38, 50, 88, 107. 200 kHz POWER 1, 2, 3 kW POWER SUPPLY 12 - 24 VDC
